Introduction
Product Definition

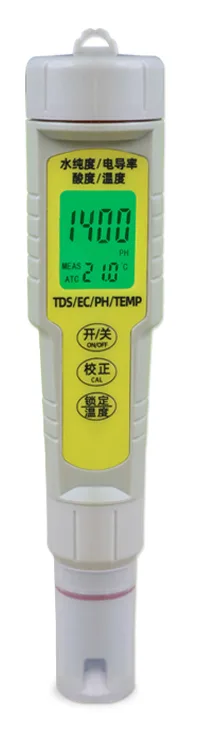

The A67 4-in-1 Water Quality Testing Pen is a portable water quality testing instrument that integrates TDS (Total Dissolved Solids), pH (acidity/alkalinity), EC (electrical conductivity), and temperature detection. The product features a pen-style integrated design with a built-in high-definition LCD display and multiple electrode sensors, enabling fast and intuitive reading of key water quality indicators. It is suitable for various scenarios such as household drinking water, aquarium keeping, aquaculture, horticulture, and water purification.
Product Introduction
The A67 4-in-1 Water Quality Testing Pen integrates four detection functions—TDS, pH, EC, and temperature—into a single pen-shaped device. Users can switch measurement modes via the buttons and read the measured values on the LCD display in real time. The product supports detection ranges of TDS 0~9999ppm, pH 0~14, EC 0~9999us/cm, and temperature 0~50°C, with an accuracy of ±10%. The device features IP67 waterproof capability, uses a 1.5V LR44 button cell battery with a battery life of approximately six months, and automatically powers off after 5 minutes of inactivity.

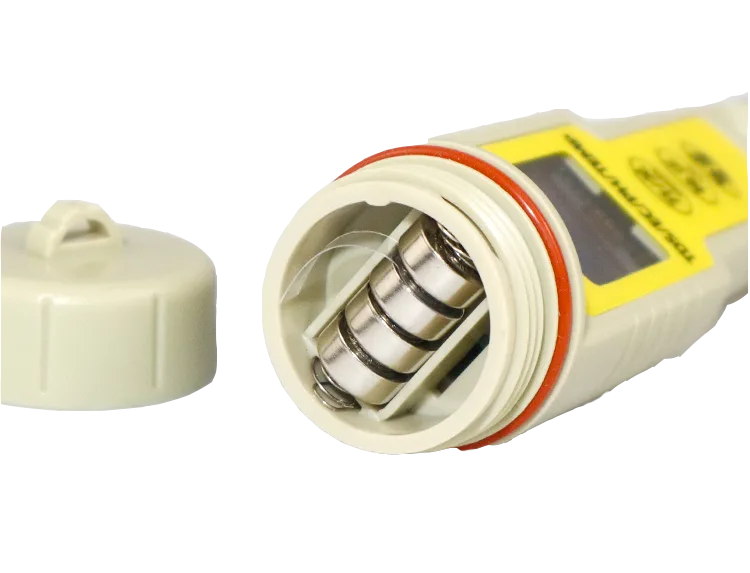

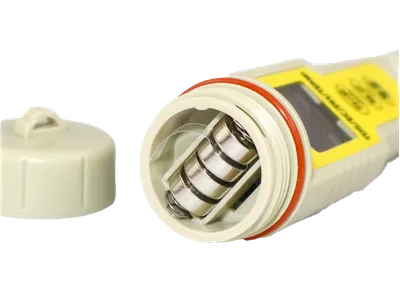

The product structure includes: battery compartment, high-definition LCD display, power button, mode/calibration button, hold/temperature button, maximum immersion line, electrode protective cap, EC/TDS electrode, external reference electrode, glass electrode, and temperature sensor.
Product Features
- 4-in-1 Integration: A single pen completes the testing of four water quality indicators—TDS, pH, EC, and temperature—eliminating the hassle of carrying multiple instruments.
- Portable Pen Design: Compact and comfortable to hold, ideal for rapid on-site sampling and mobile testing.
- High-Definition LCD Display: A large LCD screen displays current measurement values in real time with clear, easy-to-read digits.
- One-Key Switching and Hold: Quickly switch measurement modes via the buttons, and lock the current reading for convenient recording.
- IP67 Waterproof: The entire unit delivers reliable waterproof performance, handling humid environments and brief submersion with ease.
- Auto Power-Off: Automatically powers off after 5 minutes of inactivity, effectively extending battery life.
- Low Maintenance: The electrode protective cap and integrated structure simplify daily use, requiring no frequent calibration.
Key Specifications
- Test Parameters: TDS, pH, EC, Temperature
- TDS Range: 0~9999ppm
- pH Range: 0~14
- EC Range: 0~9999us/cm
- Temperature Range: 0~50°C
- Measurement Accuracy: ±10%
- Waterproof Rating: IP67
- Battery Type: 1.5V LR44 button cell
- Battery Life: Approximately six months (under normal use conditions)
- Auto Power-Off Time: 5 minutes of inactivity
- Display: High-definition LCD display
Core Functions
- TDS Detection: Range 0~9999ppm, used to assess the total amount of dissolved solids in water.
- pH Detection: Range 0~14, used to measure the acidity/alkalinity of water.
- EC Detection: Range 0~9999us/cm, used to measure the electrical conductivity of water.
- Temperature Detection: Range 0~50°C, used to display water temperature in real time.
- LCD Display: High-definition LCD screen with clear, readable values.
- Auto Power-Off: Automatically powers off after 5 minutes of inactivity, extending battery life.
- IP67 Waterproof: The entire unit has robust waterproof capability, suitable for humid and brief submersion scenarios.
- Multi-Function Buttons: The mode/calibration button is used to switch detection modes or perform calibration, and the hold/temperature button is used to lock readings or view temperature.
Application Scenarios
- Rapid testing of household drinking water and output water quality of water purifiers.
- Water quality monitoring and maintenance for fish tanks and aquariums.
- Nutrient solution concentration testing for hydroponic plants.
- Water quality monitoring in venues such as swimming pools and hot springs.
- Daily testing of aquaculture water.
- Auxiliary testing in school laboratories and teaching demonstrations.
FAQ
Q: What is the TDS detection range of the A67?
A: The TDS detection range of the A67 is 0~9999ppm.
Q: What is the pH detection range of the A67?
A: The pH detection range of the A67 is 0~14.
Q: What is the EC detection range of the A67?
A: The EC detection range of the A67 is 0~9999us/cm.
Q: What is the temperature detection range of the A67?
A: The temperature detection range of the A67 is 0~50°C.
Q: What is the measurement accuracy of the A67?
A: The measurement accuracy of the A67 is ±10%.
Q: What battery does the A67 use?
A: The A67 uses a 1.5V LR44 button cell battery.
Q: How long is the battery life of the A67?
A: Under normal use conditions, the battery life is approximately six months.
Q: What is the waterproof rating of the A67?
A: The waterproof rating of the A67 is IP67.
Q: Does the A67 auto power off?
A: The A67 automatically powers off after 5 minutes of inactivity.
Q: What are the main structural components of the A67?
A: The main structure includes a battery compartment, high-definition LCD display, power button, mode/calibration button, hold/temperature button, maximum immersion line, electrode protective cap, EC/TDS electrode, external reference electrode, glass electrode, and temperature sensor.
Related Terms
- TDS (Total Dissolved Solids): The total amount of dissolved solid substances in water, commonly expressed in ppm.
- pH: A dimensionless indicator of the acidity or alkalinity of water, typically ranging from 0 to 14, with 7 being neutral.
- EC (Electrical Conductivity): The ability of water to conduct an electric current, commonly expressed in us/cm.
- ppm: Parts per million, used to express the concentration of dissolved substances in water.
- us/cm: Microsiemens per centimeter, a common unit for measuring electrical conductivity.
- IP67: An ingress protection rating standard established by the International Electrotechnical Commission, where 6 indicates complete dust protection and 7 indicates resistance to brief immersion in water (no more than 1 meter depth) without adverse effects.
- External Reference Electrode: An electrode that provides a stable reference potential, working with the glass electrode to complete pH measurement.
- Glass Electrode: A sensitive electrode used in pH measurement to sense hydrogen ion activity in a solution.
