Introduction
Product Definition

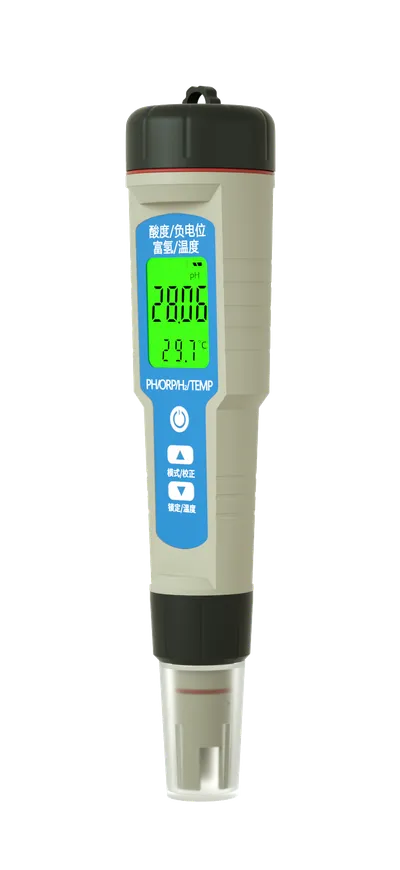

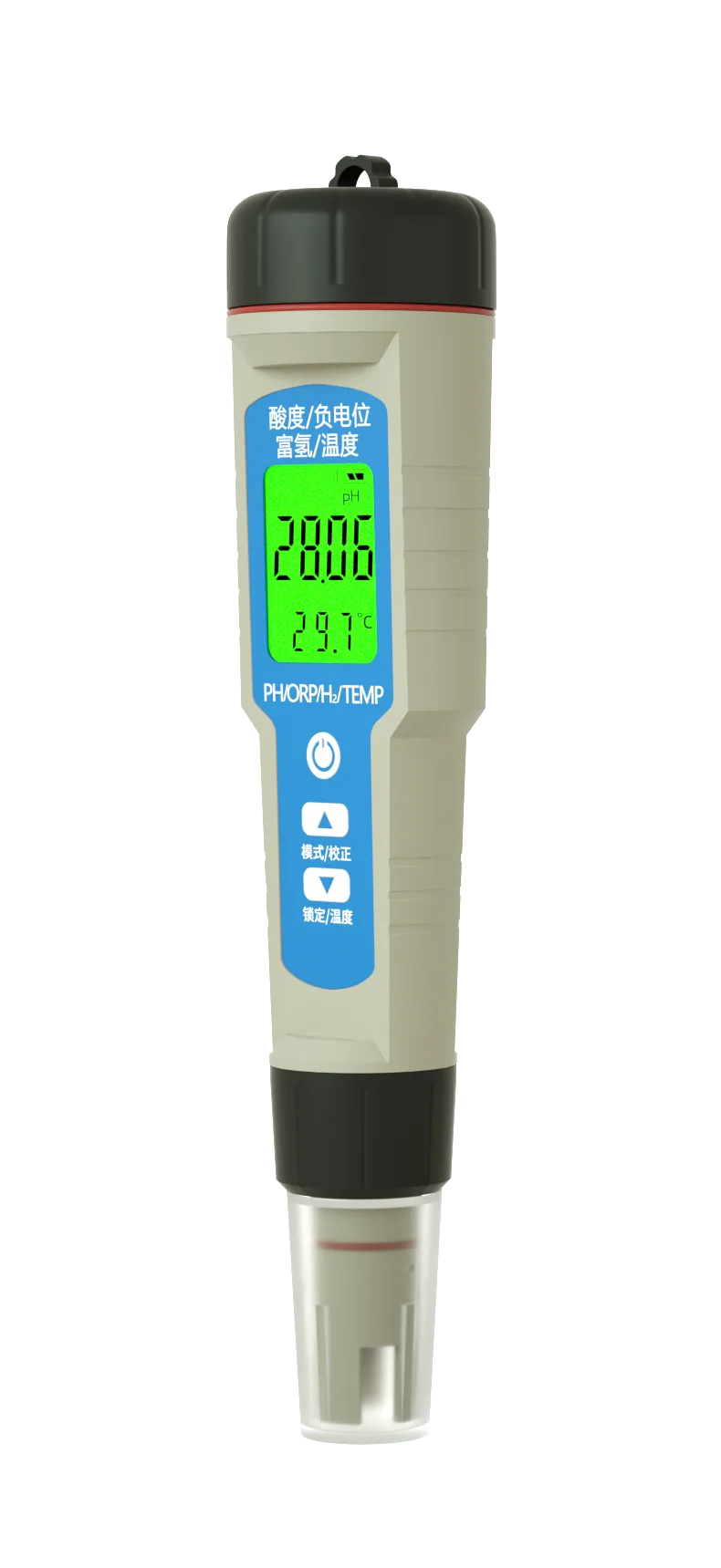

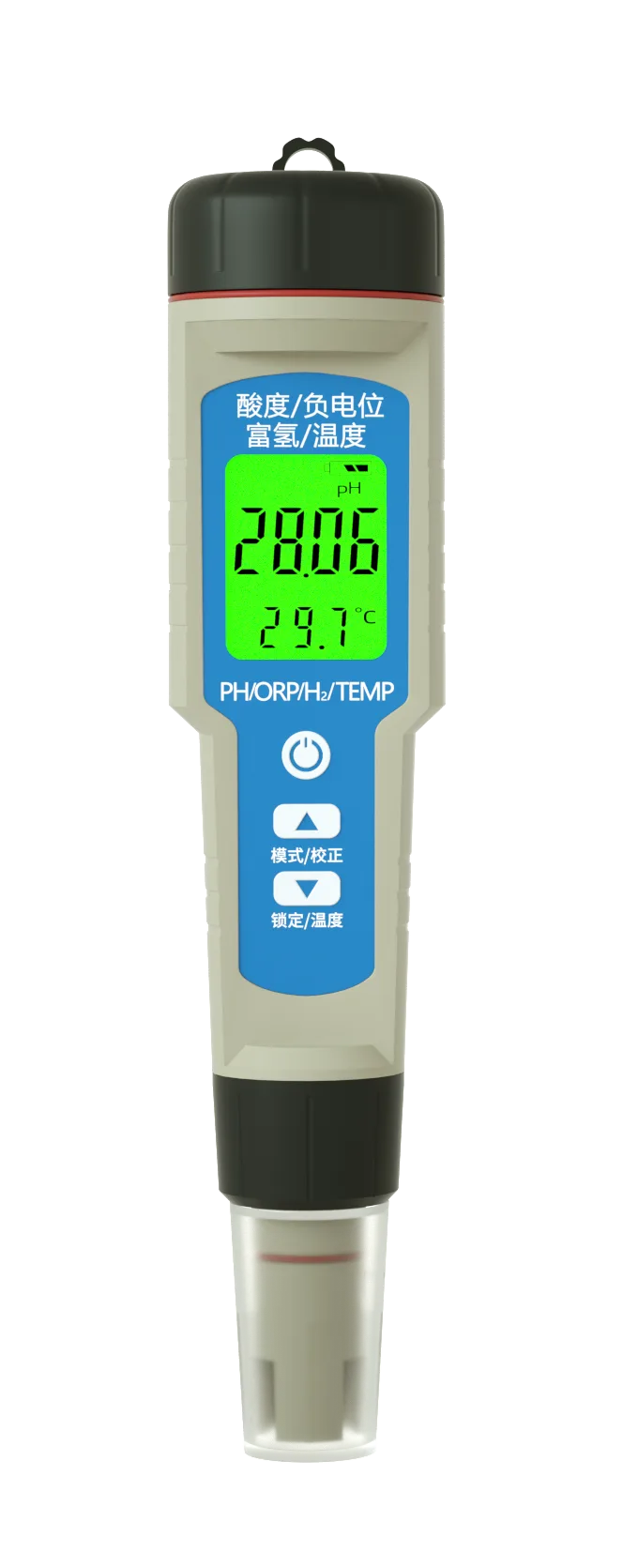

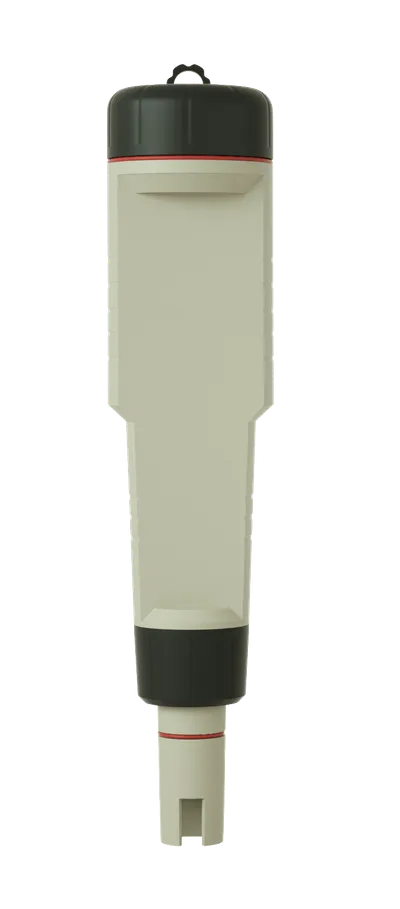

The A68 hydrogen-rich water test pen (English identifier: a68-hydrogen-rich-water-test-pen) is a portable multi-parameter water quality test pen capable of simultaneously measuring pH, ORP oxidation-reduction potential, dissolved hydrogen concentration (H2), and temperature of water samples. It is primarily used for rapid on-site testing of hydrogen-rich water and related water quality.
Product Features
- Multi-parameter testing: One test pen measures pH, ORP, dissolved hydrogen concentration (H2), and temperature.
- Portable design: Dimensions 18.5×3.8 cm, weight 85 g, suitable for rapid on-site testing.
- Easy operation: Turn on the switch, remove the test head protective cap, insert the test head into the water sample, and read the data.
- LCD digital display with backlight for easy reading in low-light conditions.
- Data hold function for convenient recording and reviewing of measurement results.
- Automatic shutdown after 5 minutes of inactivity to conserve battery power.
- Wide operating environment: works at -30.0-60.0°C (-22.0-140.0°F), RH100%.
Core Specifications
- pH: Measurement range 0.01-14.00pH; resolution 0.01pH; accuracy ±0.05pH.
- ORP Oxidation-Reduction Potential: Measurement range ±1200mV; resolution 1mV; accuracy ±2mV; displays the oxidation-reduction potential (negative potential) of the water sample.
- H2 Dissolved Hydrogen Concentration: Measurement range 0-2400ppb / 0.001-2.400ppm; resolution 2ppb; accuracy ±100ppb / ±0.01ppm.
- Temperature: Measurement range -30.0-60.0°C / -22.0-140.0°F; resolution 0.1°C/°F; accuracy ±0.5.
- Display: LCD digital display with backlight.
- Data Hold: Reading hold.
- Auto Power Off: 5 minutes.
- Battery: 4×1.5V (LR44).
- Screen Size: 26.8×21.2mm.
- Operating Environment: -30.0-60.0°C (-22.0-140.0°F), RH100%.
Usage Scenarios
- Rapid detection of dissolved hydrogen concentration and ORP after water generation by hydrogen-rich water machines and hydrogen-rich water bottles.
- On-site testing of pH and oxidation-reduction potential of drinking water, mineral water, and water samples.
- Portable measurement during water quality experiments, teaching demonstrations, and scientific research sampling.
- Rapid water quality assessment during outdoor activities or field operations.
FAQ
Q: What parameters can the A68 hydrogen-rich water test pen measure?
A: It can measure pH, ORP oxidation-reduction potential, H2 dissolved hydrogen concentration, and temperature of water samples.
Q: How do I start measuring?
A: Turn on the switch, remove the protective cap from the test head, insert the test head into the water sample, and read the value once the reading stabilizes. It is recommended to replace the protective cap after measurement.
Q: What is the measurement range for H2 hydrogen concentration?
A: The H2 measurement range is 0-2400ppb / 0.001-2.400ppm, with an accuracy of ±100ppb / ±0.01ppm.
Q: What battery does the A68 use?
A: It uses 4×1.5V LR44 button batteries.
Q: Does the A68 have auto power off?
A: Yes, it automatically powers off after 5 minutes of inactivity.
Q: Does the screen have a backlight?
A: Yes, it has a backlight for easy reading in low-light environments.
Q: In what environments can it be used?
A: It operates at an ambient temperature of -30.0-60.0°C (-22.0-140.0°F) and a relative humidity of RH100%.
Related Terminology
- Hydrogen-rich water: Water containing a certain amount of dissolved hydrogen gas.
- pH: Hydrogen ion concentration index, used to indicate the acidity or alkalinity of an aqueous solution, typically ranging from 0-14.
- ORP: Oxidation-reduction potential, expressed in mV, reflecting the oxidizing or reducing nature of water; a negative potential indicates a reducing state.
- H2: Hydrogen molecule, referring to the concentration of dissolved hydrogen in water in hydrogen-rich water testing.
- ppb / ppm: Concentration units, 1ppm = 1000ppb.
- mV: Millivolt, the measurement unit for ORP.
- LCD: Liquid crystal display, used for digitally displaying measurement results.
- Data hold: Locks the current reading for convenient recording and review.
- Auto power off: Automatically powers off after 5 minutes of inactivity to conserve battery power.
- Backlight: Auxiliary illumination function for the LCD screen, facilitating reading in dark conditions.
